RAS Keypad

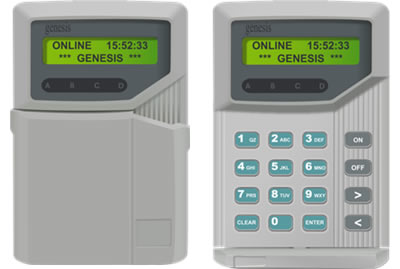

The Remote Access Station GEN-030 provides an attractive and convenient method to control the Genesis system. The RAS includes a hinged cover that can be used with or without the cover, depending on the individual requirements. The soft touch backlit keys enable the RAS to operate in all lighting conditions and the on-board fully programmable sounder allows audio feedback for system disarming and many other automation functions.

The RAS is used in conjunction with the Master Panel to display user menu functions as well as alarm and access control functions. The unit provides a high-contrast LCD display that indicates system information, programming details, and status of up-to 64 security areas. Four LED indicators are incorporated into the front panel that can be programmed to display status of inputs, outputs, areas, or they can be utilised for variety of other functions.

The RAS can display up-to 100 programmable text messages that can be broadcast to the LCD display, these messages can be tagged to events, Card users, or building automation functions.

Each RAS also has two in-built Wigand inputs that provide direct connection of external readers for single door access control at each RAS location.

The RAS provides the following functions:

  • Accessing and securing areas
  • Isolating and de-isolating inputs
  • Opening a door
  • System testing

The Genesis innovative RS485 high-speed LAN network provides communication with the master at 19,200 baud rate. That means that card response is instantaneous, even on larger installation sites.

Up to 96 Remote Access Stations can be fitted to Genesis LAN network.



GEN-030 RAS Provides:
High contrast Wide angle LCD Display
Four programmable LED indicator lights
Two Wiegand card reader inputs
Egress input, and door Lock output
100 valid user Card/PIN cache
Soft touch Back-lit keys
Up-to 100 fully programmable messages
