2-Door Controller

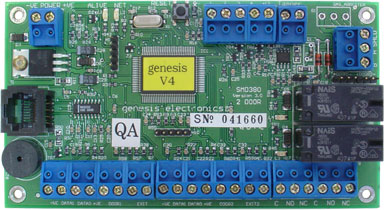

The GEN-045 Two Door Controller connects to the genesis Master Panel and provides powerful integrated security/access control. It is possible to add multiple controllers on the genesis RS485 LAN network. The standard TDC unit includes provision for two entry doors, or one in/out door. For high rise application, a common LAN cable can be dropped down the riser and one or more TDC controllers installed on each floor, providing an easy and quick installation with expansion of up to 128 doors.

The GEN-045 TDC provides an in-built cache for each door. This means that each door may continue to function in stand-alone mode even if there is no communication with the master panel.

Access is incredibly fast because there is no reliance upon the master for the granting of access. The LAN communication is transmitted at an incredibly high speed, operating at 19,200 baud rate. That means that the card presentation response is virtually instantaneous, even on larger sites.

Anti-Pass back zones are supported where in/out readers are required. The programmable entry counters can be incorporated where TDCs can monitor the number of card users on site. The counter function is ideal for car parks and similar controlled access applications. Selectable access levels for dual custody and PIN & Card access control function are supported.

The on-board RS-232 interface provides direct connection to PC. That means you can connect a PC anywhere on the Genesis RS485 LAN. The system supports up to 9,400 Card/PIN users with in-built database that provides full text capabilities. It is possible to upload the database to a PC and still have all the text information. There is no compromise between the number of users and the text facility.



GEN-045 Expander provides:
Two Wiegand card reader inputs
Two egress inputs
Two door position inputs
Two general purpose inputs
4 x General purpose outputs
Two high current relays, for locks
Supports up-to 128 access doors
100 card CACHE, per door
Anti-passback, pin & card, dual custody
Many reader technologies supported
Supports (GEN-046) 2-input module
RS232, Computer interface
